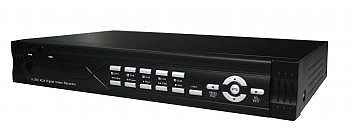

 QR404-5 4-Channel DVR with VGA & 500GB Hard Drive



This 4 channel DVR provides you peace of mind by allowing you to remotely monitor your premises over the Internet, or even on your cell phone running Windows Mobile Pro, Symbian, iphone, iPad, Android, and some Blackberry models on 3G networks. Watch live video or playback video, and even access DVR menus from virtually anywhere in the world. With the sophisticated user interface, you can plug in your USB mouse (included) to easily navigate through the program menus.  H.264 compression allows you to maximize your hard drive recording time, and delivers good digital video quality when viewing over the Internet or 3G mobile networks. You can record at CIF resolution real time, or at larger screen D1 resolution at reduced frame rate.


Specifications:
Video Compression H264
Video Inputs 4 BNC
Video Output 2 BNC, 1 VGA
VGA Resolution 800x600, 1024x768, 1280x1024, 1440x900(hd), and 1920x1200(HD)
Display Resolution 704x480
Display Frame Rate (Shared) 120 FPS
Playback Resolution (D1) 704x576, (CIF) 352x240
Record Frame Rate (Shared) (D1) 120 FPS, (CIF) 30 FPS
Record Options Time, Alarm, Motion Detection and Manual
Hard Drive Number/Type Supported 500 GB
Audio Inputs/Outputs 4X RCA input and 2X RCA output
USB Ports 2 USB 2.0 Ports
USB Support Mouse, Flash drive, Hard Drive
Ethernet Port 1-RJ45
Remote Monitoring  Internet Explorer, Mobile Phone with Win Mobile Pro, Symbian OS, iPhone, iPad, Android, and some Blackberry models on 3G Networks
Operating System Support Win2000, WinXP, Vista, Win7 (MacOS not supported)
RS-485 Port (PTZ Support) Yes
External Alarm In/Out 4/1
Power Supply 110-240V, 12V 3A
Power Consumption 10 to 15W
Operating Temperature/Humidity 50°F to 104°F (10°C to 40°C)/ 10% - 90%
Dimensions (WXDXH) 11.75 x 9 x 2.25 in (300 x 229 x 58 mm)
Weight  4 Lbs (1.8 Kg)



DVR Includes:

QR404 4 Channel H.264 Network DVR

DVR power supply

Remote control

USB mouse

RJ-45 Cat 5 Network Cable

BNC to RCA Video Cable

Product Manual

Software CD







 CLICK HERE to View a Complete List of Surveillance Cameras
