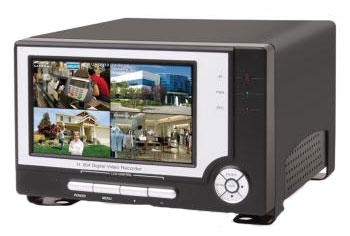

 QR4074-5 4-Channel DVR with Built-in 7 " Monitor & 500GB Hard Drive



This observation systems includes a DVR with a built-in 7"  monitor. The QR4074 uses H264 compression for conserving storage space with little loss of quality, built-in quad processor and multiple recording options. Easily backup your vital scenes to a USB flash drive or hard drive. Remotely monitor your assets over the internet via Internet Explorer, or through a cell phone with Windows Mobile Pro, Symbian, iPhone, iPad, Android, and some Blackberry models on 3G networks.


Specifications:
Video Compression H264
Video Inputs 4 BNC
Video Output 1 BNC
VGA Resolution None
Display Resolution 704x480
Display Frame Rate (Shared) 120 FPS
Playback Resolution (D1) 704x576, (CIF) 352x240
Record Frame Rate (Shared) (D1) 120 FPS, (CIF) 30 FPS
Record Options Time, Alarm, Motion Detection and Manual
Search Options Time, Event (Alarm or Motion Detection)
Hard Drive Number/Type Supported 500 GB
Audio Inputs/Outputs 1X RCA input and 1X RCA output
USB Ports 2 USB 2.0 Ports
USB Support Mouse, Flash drive, Hard Drive, DVD Burner
Ethernet Port 1-RJ45
Remote Monitoring Internet Explorer, Mobile Phone with Win Mobile Pro, Symbian OS, iPhone, iPad, Android, and some Blackberry models on 3G Networks
Operating System Support Win2000, WinXP, Vista, Win7 (MacOS not supported)
RS-485 Port (PTZ Support) Yes
External Alarm In/Out None
Power Supply 110-240V, 12V 3A
Power Consumption 10 to 15W
Operating Temperature/Humidity 50°F to 104°F (10°C to 40°C)/ 10% - 90%
Dimensions (WXDXH) 9.25 x 9.25 x 6.25 in (235 × 235 × 159 mm)



DVR Includes:

QR4074 4 Channel H.264 Network DVR w/ 7 inch display

DVR power supply

Remote control

USB mouse

RJ-45 Cat 5 Network Cable

BNC to RCA Video Cable

Product Manual

Quick Start Guide

Software CD
