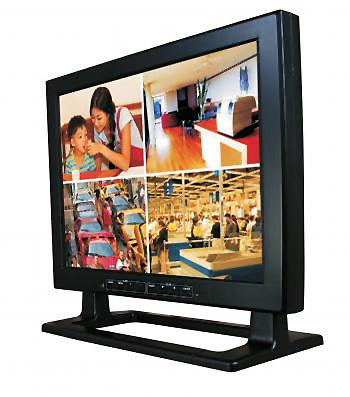

 QSDR174RTS 4-Channel DVR with 17" Built-in Monitor & 500GB Hard Drive



This 17 inch monitor with built-in 4 channel DVR provides you peace of mind by allowing you to remotely monitor your premises over the Internet, or even on your Windows Mobile Pro, Symbian, iPhones, iPads, Android, and some Blackberry models on 3G networks. Watch live video or playback video, and even access DVR menus from virtually anywhere in the world. With the sophisticated user interface, you can plug in your USB mouse (included) to easily navigate through the program menus.  H.264 compression allows you to maximize your hard drive recording time, and delivers good digital video quality when viewing over the Internet or 3G mobile networks. You can record at CIF resolution real time, or at larger screen D1 resolution at reduced frame rate.

Specifications:
TFT-LCD Monitor 17" Diagonal
Resolution 1280x1024
Aspect Ratio 4.3
Peak Brightness 300 d/m2 (Typical)
Contrast Ration 1000:1 (Typical)
Number of Colors 16.7M
Response Time 8 ms (Tr- Tf) (Typical)
Viewing Angel 60/60, 60/40, (CR > 10)
LSVD Digital Interface Dual 8 bit
Color Temperature Adjustment Yes
On Screen Display Function Yes
Video Compression H264
Audio Inputs/Outputs 4X RCA input and 1X RCA output
USB Ports 2 USB 2.0 Ports
USB Support Mouse, Flash drive, Hard Drive
Ethernet Port 1-RJ45
Remote Monitoring Internet Explorer, Mobile Phone with Win Mobile Pro, Symbian OS, iPhone, iPad, Android, and some Blackberry models on 3G Networks
Operating System Support Win2000, WinXP, Vista, Win7, Mac OS 10.6
RS-485 Port (PTZ Support) Yes
External Alarm In/Out 4/1
Power Supply 110-240V, 12V 3A
Dimensions 15.75 x 2.5 x 13.25 in ( 400x64x337 mm)
Operating Temperature/Humidity 50°F to 104°F (10°C to 40°C)/ 10% - 90%



DVR Includes:

17" Monitor with Built-in QSD9004 DVR

DVR power supply

Remote control

USB mouse

RJ-45 Cat 5 Network Cable

Product Manual

Software CD
