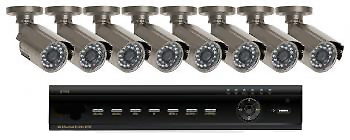

 QT426-803-1 16-Channel DVR with 8 CCD Color Cameras & 1TB Hard Drive



Quality you can see and experience at an affordable price. This 16 channel DVR features real time CIF recording, or D1 recording at a lower frame rate, remote Internet monitoring and mobile surveillance through cell phones with Windows Mobile Pro and Symbian OS, iPhones, iPads, Android, and Blackberry on 3G networks. The H.264 compression allows for maximum storage and little loss of quality, while recording video on to a hard drive. It can simultaneously display live footage, record, playback, connect via network, and back-up without any recording loss, and save the files on the pre-installed 1 TB hard drive. System also comes with 8 Color CCD cameras.

MAC OS 10.6 Compatible!


Specifications:
Video Compression H264
Video Inputs 16 BNC
Video Output 2 BNC, 1 VGA
VGA Resolution 800x600, 1024x768, 1280x1024
Display Resolution 704x480
Display Frame Rate (Shared) 30 FPS per camera
Playback Resolution (D1) 704x480, (CIF) 352x240
Record Frame Rate (Shared) (D1) 120 FPS, (HD1) 240 FPS (CIF) 480 FPS
Record Options Time, Alarm, Motion Detection and Manual
Hard Drive Number/Type Supported 1 TB
Audio Inputs/Outputs 4X RCA input and 1 RCA output
USB Ports 2 USB 2.0 Ports
USB Support Mouse, Flash drive, Hard Drive
Ethernet Port 1-RJ45
Remote Monitoring Internet Explorer, Mobile Phone with Win Mobile Pro, Symbian OS, iPhone, iPad, Android, and some Blackberry on 3G Network
Operating System Support WinXP, Vista, Win7, (MacOS not supported)
RS-485 Port (PTZ Support) Yes
External Alarm In/Out 16/1
Power Supply Input 110-240V, Output 12V 3A
Operating Temperature/Humidity 50°F to 104°F (10°C to 40°C)/ 10% - 90%
Dimensions (WxDxH) 11.75 x 11 x 2.5 in (299 x 280 x 64 mm)



DVR Kit Includes:

QT426 16 Channel H.264 Network DVR

Power Supply for DVR

Remote Control

USB Mouse

RJ-45 Cat 5 Network Cable

BNC to RCA Video Cable

1 TB Hard Drive (pre-installed)

8 QSDS14273W Color CCD Cameras (40 ft Night Vision)

8 Camera Stands

8 60 ft Camera Cable

1 Power Supply 8 Way Power Splitter for Cameras

Product Manual

2 Quick Start Guides
