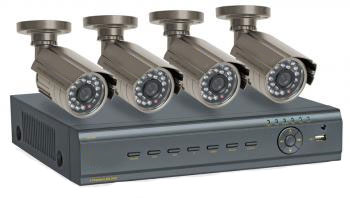

 QT428-403-5 8-Channel DVR with 4 CCD Color Cameras & 500GB Hard Drive



Quality you can see and experience at an affordable price. This 8 channel DVR features real time CIF recording, or D1 recording at a lower frame rate, remote Internet monitoring and mobile surveillance through cell phones with Windows Mobile Pro and Symbian OS, iPhones, ipads, Android, and Blackberry on 3G networks. The H.264 compression allows for maximum storage and little loss of quality, while recording video on the included 500GB HD. It can simultaneously display live footage, record, playback, connect via network, and back-up without any recording loss.Q-See’s Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This system comes with 4 CCD color cameras, you can add up to 4 additional cameras as needed, and it can be integrated into your current security system.

MAC OS 10.6 Compatible!


Specifications:
Video Compression H264
Video Inputs 8 BNC
Video Output 1 BNC, 1 VGA
VGA Resolution 800x600, 1024x768, 1280x1024
Display Resolution 704x480
Display Frame Rate (Shared) 30 FPS per camera
Playback Resolution (D1) 704x480, (CIF) 352x240
Record Frame Rate (Shared) (D1) 7.5 FPS, (CIF) 30 FPS
Record Options Time, Alarm, Motion Detection and Manual
Hard Drive Number/Type Supported 500 GB
Audio Inputs/Outputs 4X RCA input and 2X RCA output
USB Ports 2 USB 2.0 Ports
USB Support Mouse, Flash drive, Hard Drive
Ethernet Port 1-RJ45
Remote Monitoring Internet Explorer, Mobile Phone with Win Mobile Pro, Symbian OS, iPhone, iPad, Android, and some Blackberry on 3G Network
Operating System Support Win2000, WinXP, Vista, Win7, (MacOS not supported)
RS-485 Port (PTZ Support) Yes
Audio Inputs/Outputs 4/1
External Alarm In/Out 8/1
Power Supply Input 110-240V, Output 12V 3A
Operating Temperature/Humidity 50°F to 104°F (10°C to 40°C)/ 10% - 90%
Dimensions (WxDxH) 11.75 x 11 x 2.5 in (299 x 280 x 64 mm)



DVR Kit Includes:

QT428 8 Channel H.264 Network DVR

Power Supply for DVR

Remote control

USB mouse

RJ-45 Cat 5 Network Cable

BNC to RCA Video Cable

500 GB Hard Drive (pre-installed)

4 QSDS14273W Color CCD Cameras with 3.6mm lens and Sony 1/4 inch Sensor

4 Camera Stands

4 60 ft Camera Cable

Power Supply 4 Way Power Splitter for Cameras

Product Manual
